A more affordable version of the sophisticated Coperto Deluxe, although it shares most of the Coperto main features, is covered by an anti-break temperate glass perfectly sealing the playfield area, which offers three big advantages: prevents all tampering with the game as well as thefts of balls, reduces the playing noise and keeps the playing area clean.
Olympic is therefore the table you need where playing cannot be assiduously supervised.
Available in the version with non-rotating goalkeeper only.
As an option, the table can be equipped with a lighting system for the playing field, to allow use in dimly lighted places or create special effects in the dark.
The possibility of installing highly sophisticated coin validation systems (as the electromechanical system or the electronic GARL 2001) makes it possible to meet different requirements in revenues.
As a plus, Olympic has been customized for advertising aims, see our section Play & Communicate for examples.
Download the technical data sheet of your GARLANDO product, in .PDF format.
Model | OLYMPIC |
---|---|
Length | 150cm |
Width | 76cm |
Width with going-through rods | 125cm |
Width with telescopic rods | 110cm |
Height | 90,5cm |
Playfield | 115 x 70,5cm |
Weight | 100 Kg |
Packing | 152 x 80 x 41cm |
Click on the individual icons to view the information

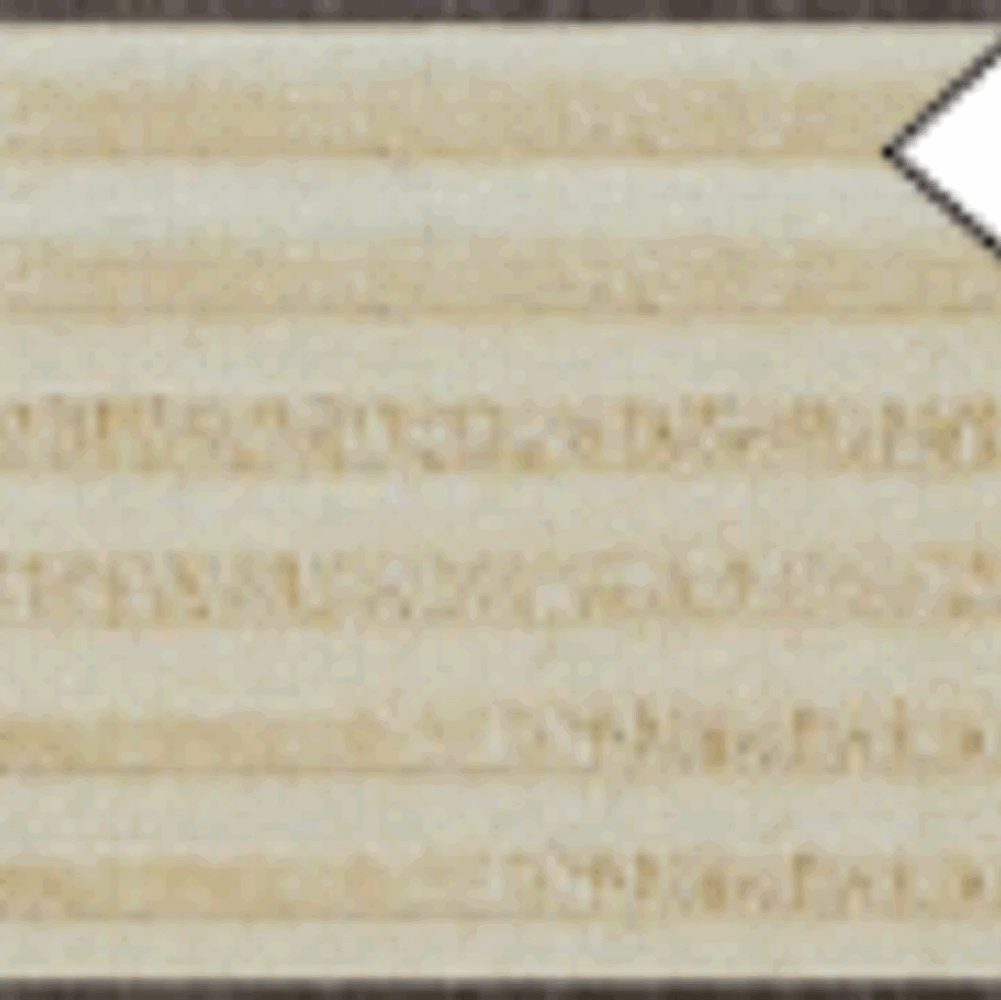

Cabinet constructed from high quality multi-layer plywood coated with plastic laminate. The sturdiness of the materials utilized is increased by the remarkable thickness (3cm = 1+1/4in) to create a heavy duty structure for the toughest use. Colour: upper cabinet with briar wood effect, lower cabinet black.

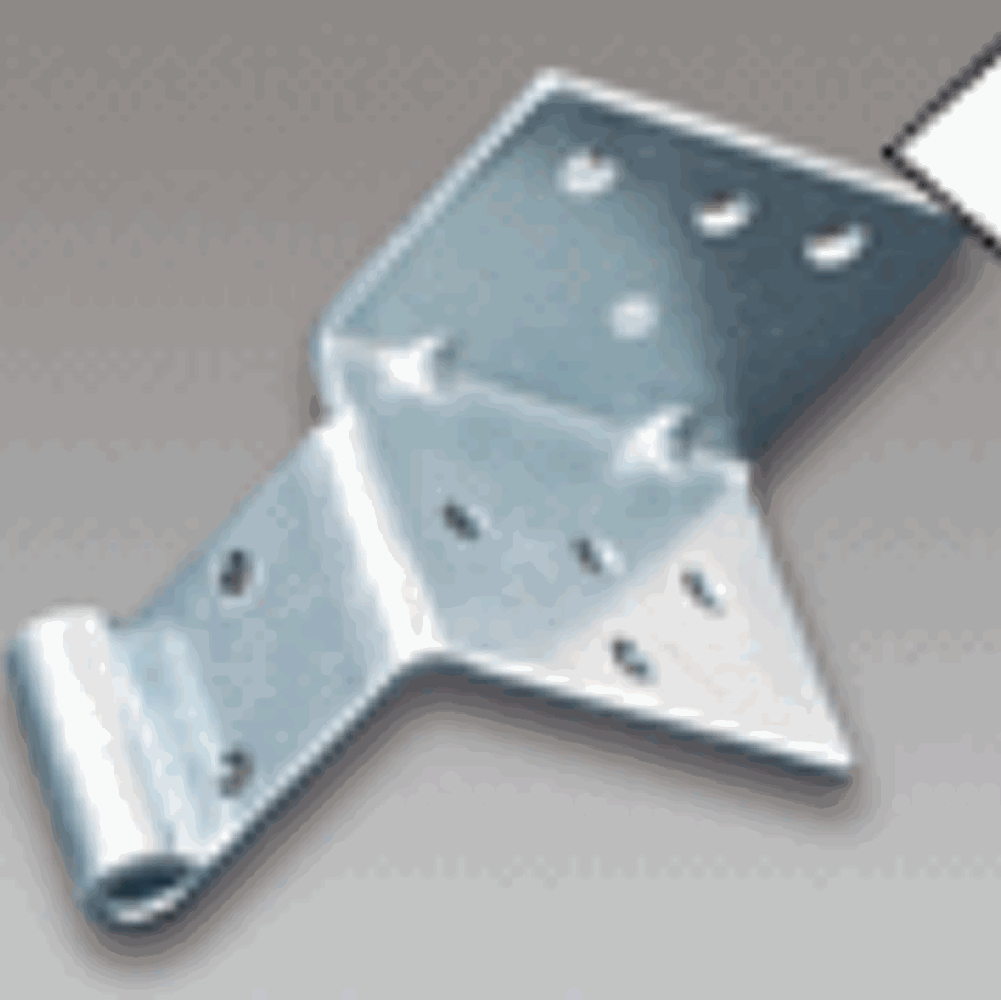

The table structrure is kept together by metal plates and brackets fastened by screws and bolts for easy replacing of all parts, even the wooden ones.

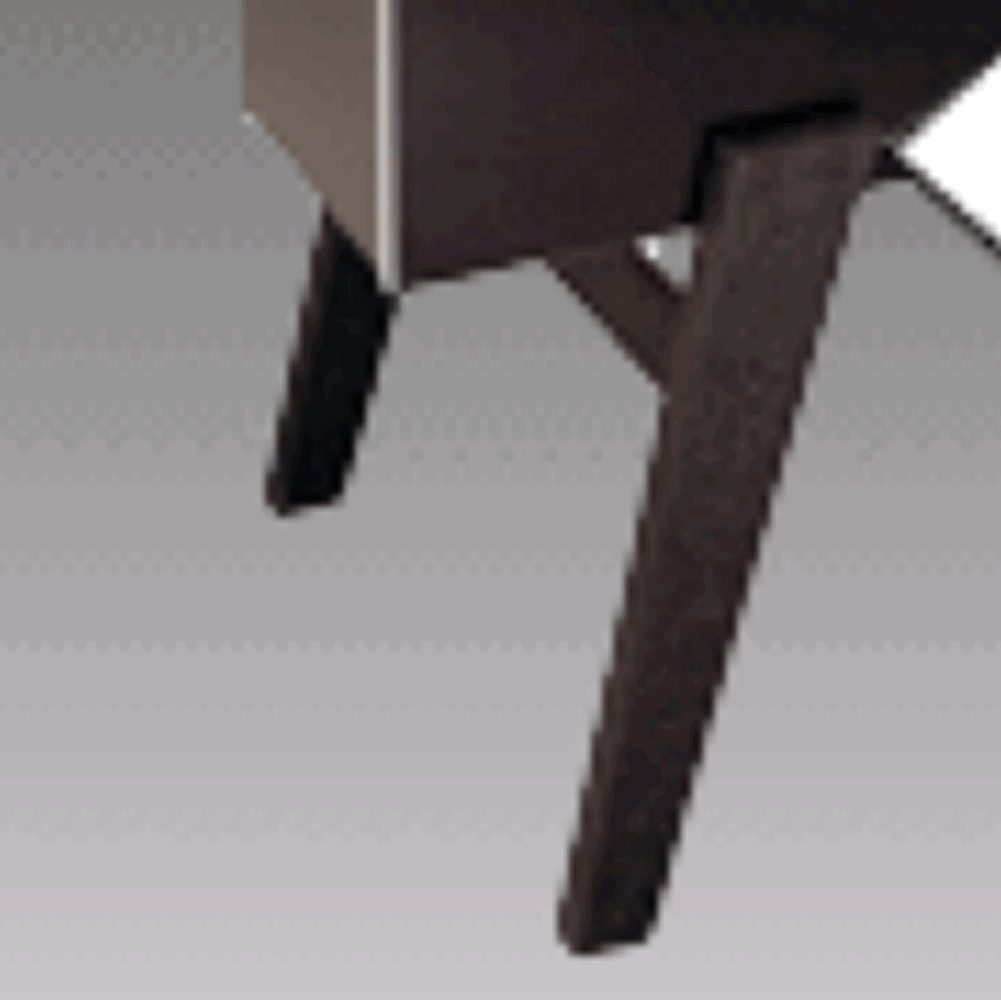

Slanting legs in beechwood coated in washable paint, with remarkable thickness (5 centimeters = 2in) for a perfect stability on the ground.
High stress resistance machine-trued hollow steel bars - diameter 16mm - coated with anti-rust chromium-plating. The quality of the materials used adds to the thickness of 2,2mm to prevent the bars from bending: they maintain a perfect shape for a long time. It is possible to choose between the going-through (also called solid) bars and the telescopic type.

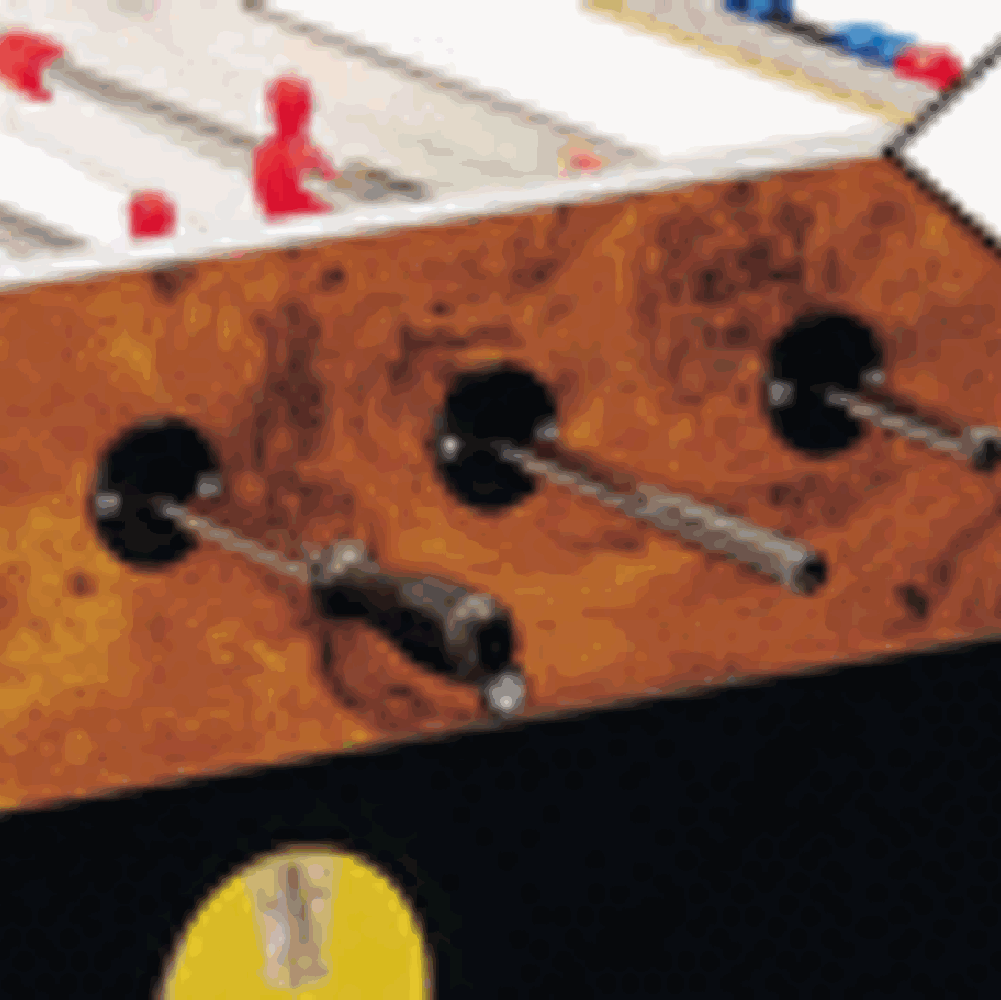

Going-through bars: the standard bars protrude from the cabinet - at the handle opposite side - to follow the international competition standard, which is also used in many countries worldwide.

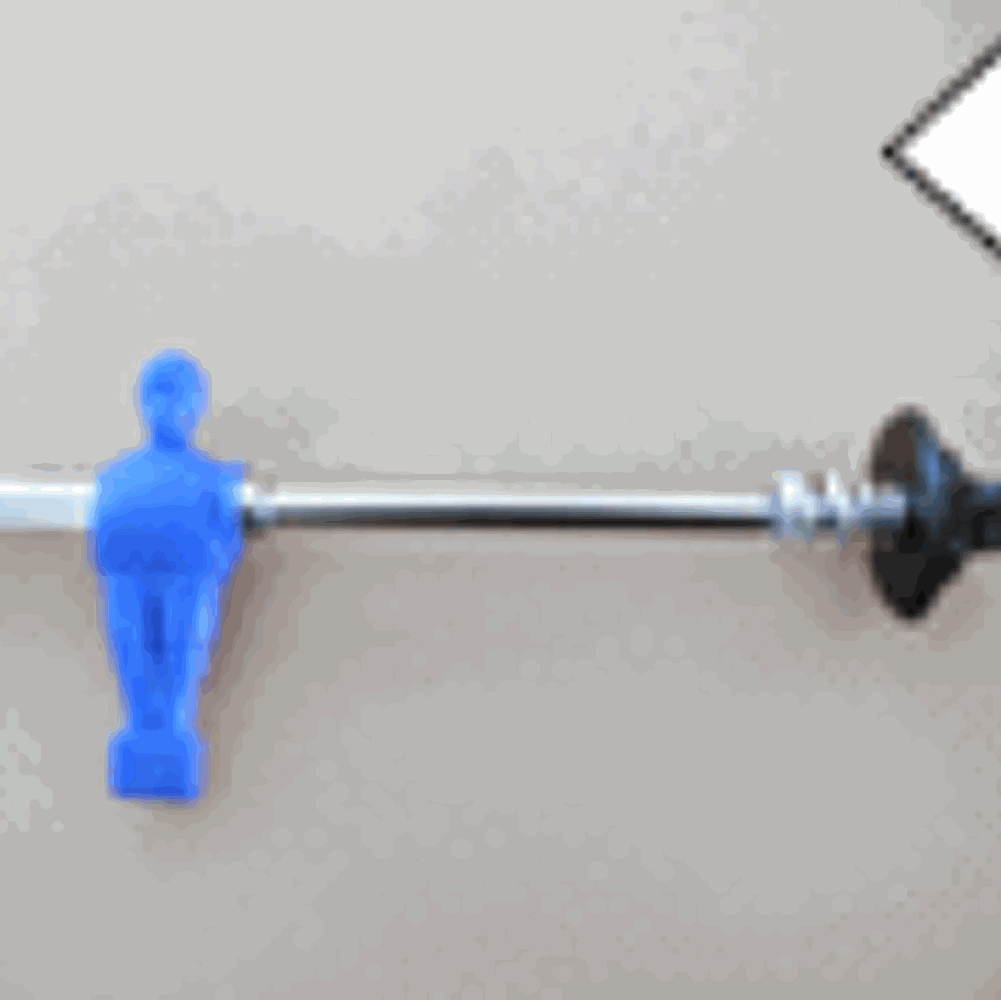

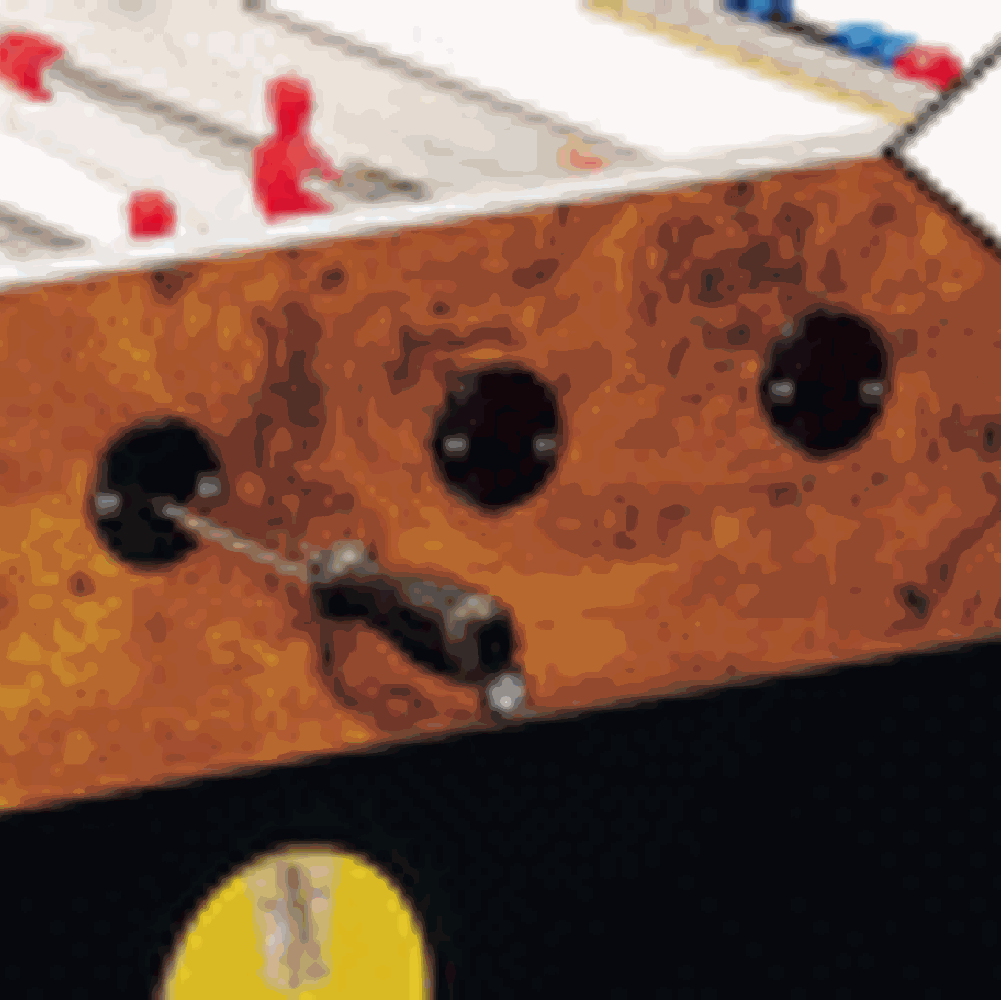

Safety device (telescopic bars): on request each table can be equipped with telescopic safety bars, having the same technical features as the going-through type. The difference is in the functioning, to obtain the maximum level of safety.
In telescopic bars a smaller diameter bar glides inside the players bar, whose end does not protrude from the cabinet. This prevents dangerous strikes to the childrens' eyes and face. Its use is strongly advised if the football table is meant for children and in the event that the table must be put in a location attended by children.

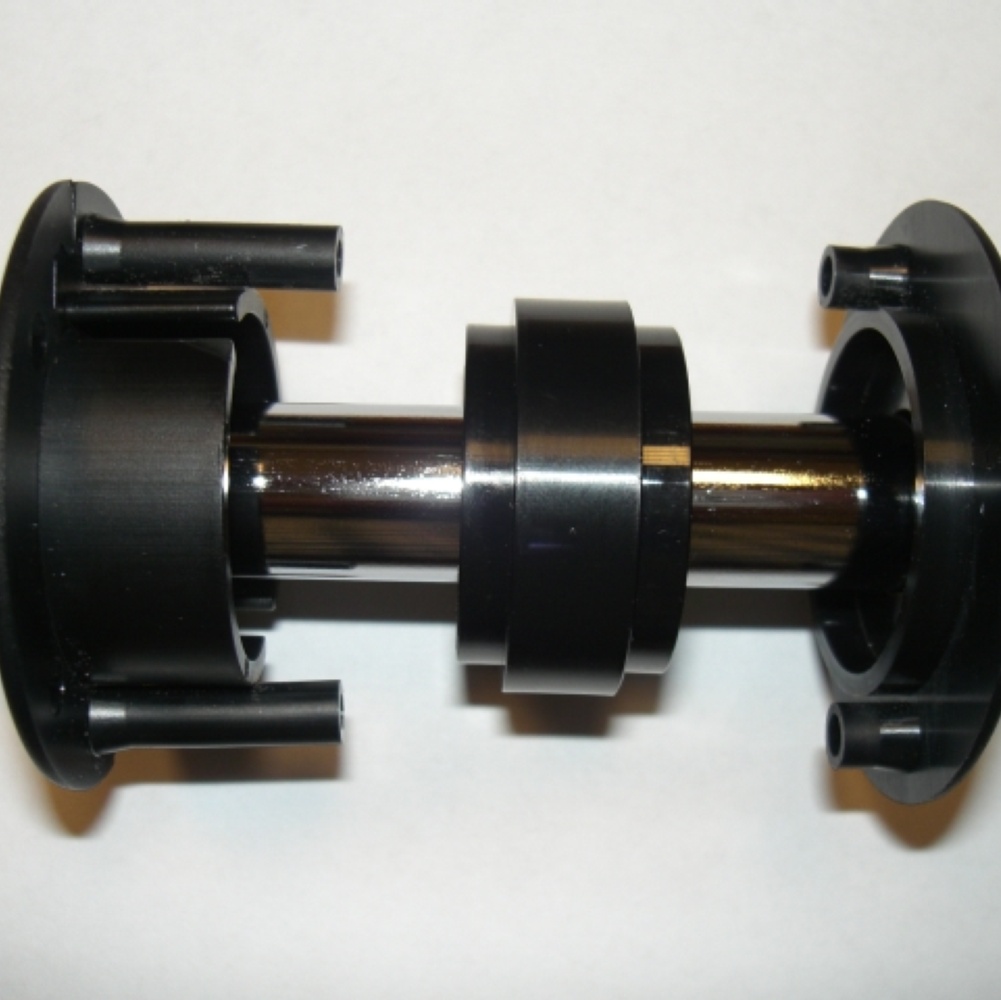

Bars are fixed to the cabinet by means of nylon ball bearings.

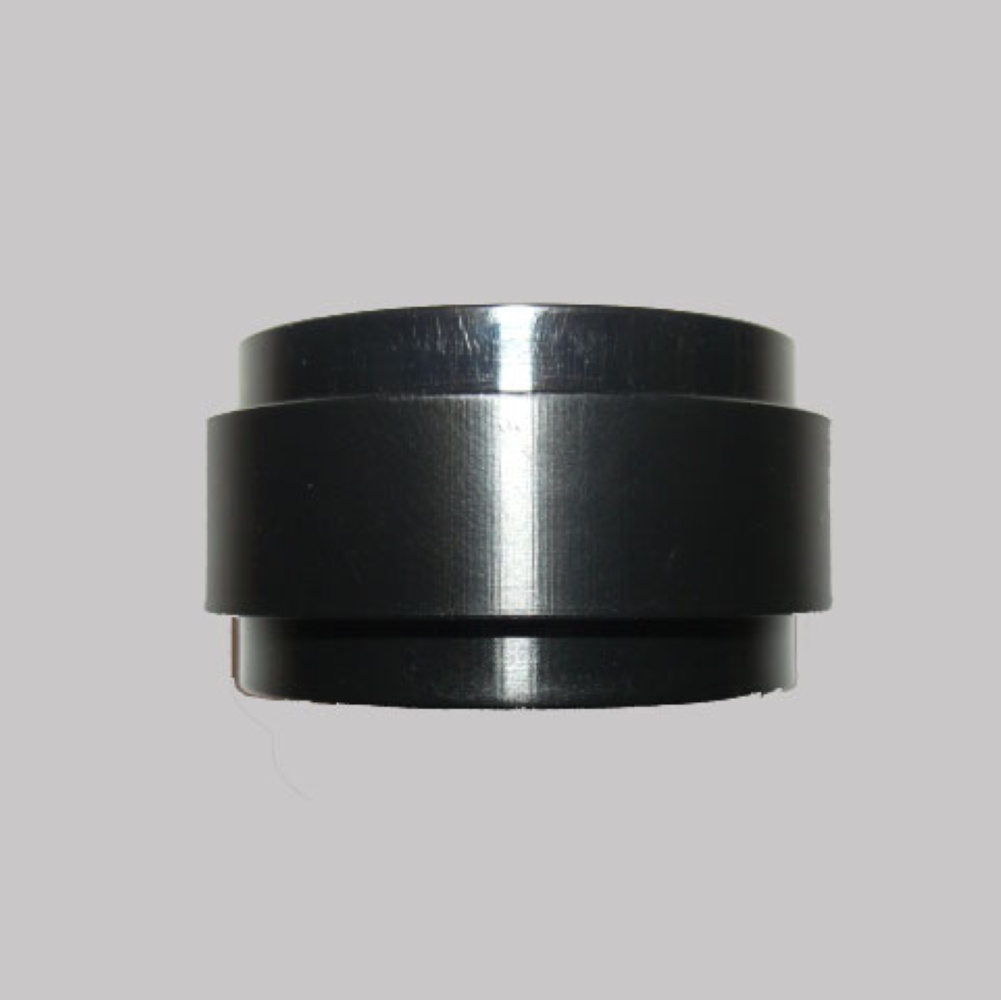

The steel roller bearings inside the bearings fixing bars to the cabinet greatly improve the game speed, while reducing the stress for the players' wrists.

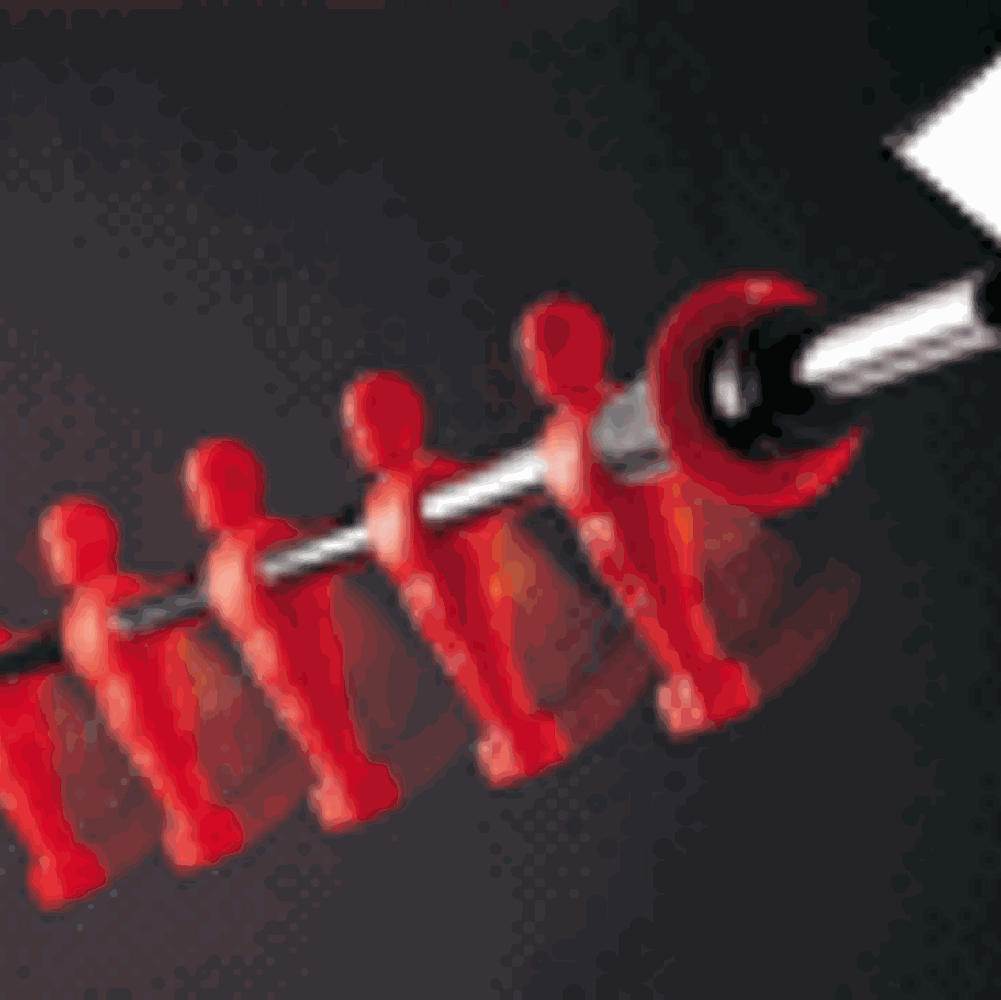

One-colour players in plastic material (moplen) representing a stylized human figure, directly moulded onto the bars: they do not move, cannot be displaced and maintain their positions perfectly. Team colours: red and blue.

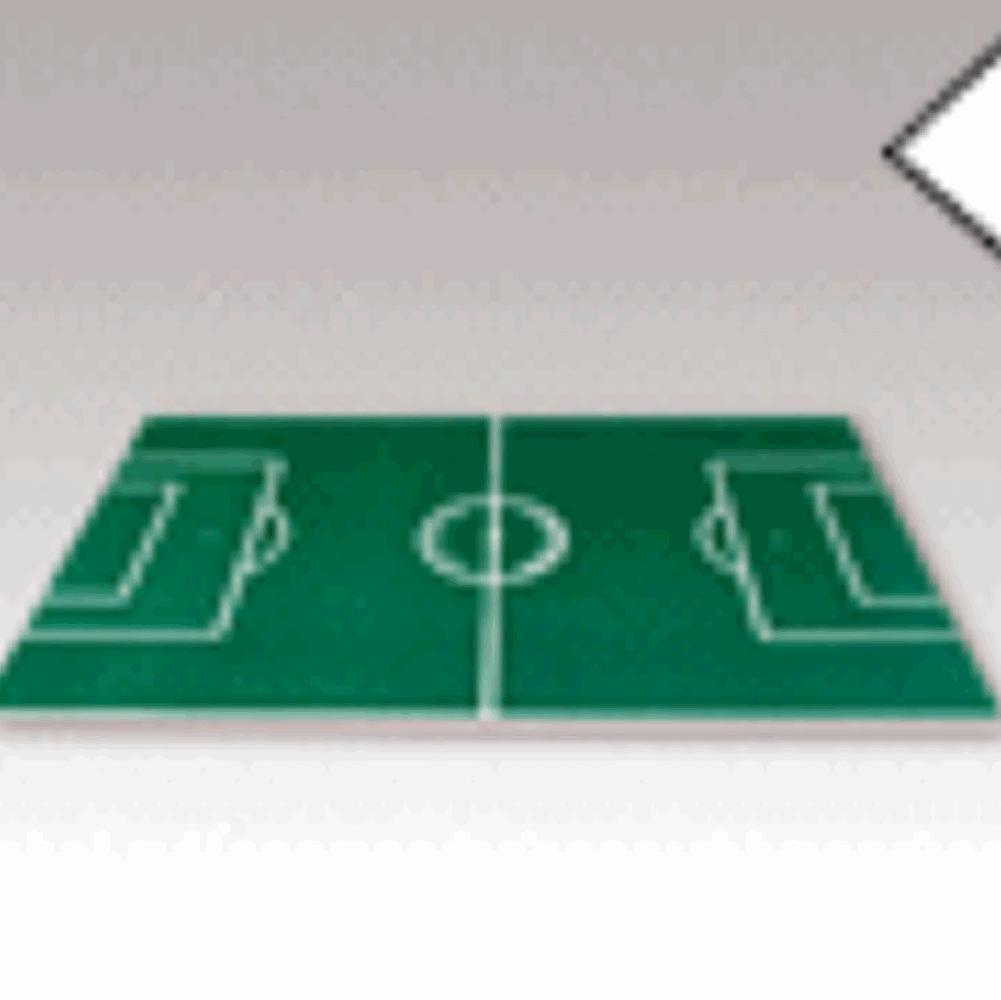

Playing field in 5mm thick tempered non-reflective sand-blasted glass. The version with fully rotating goalkeeper can also have a plastic laminate playfield. The silk-screen printed white lines on a green background reproduce the football ground.

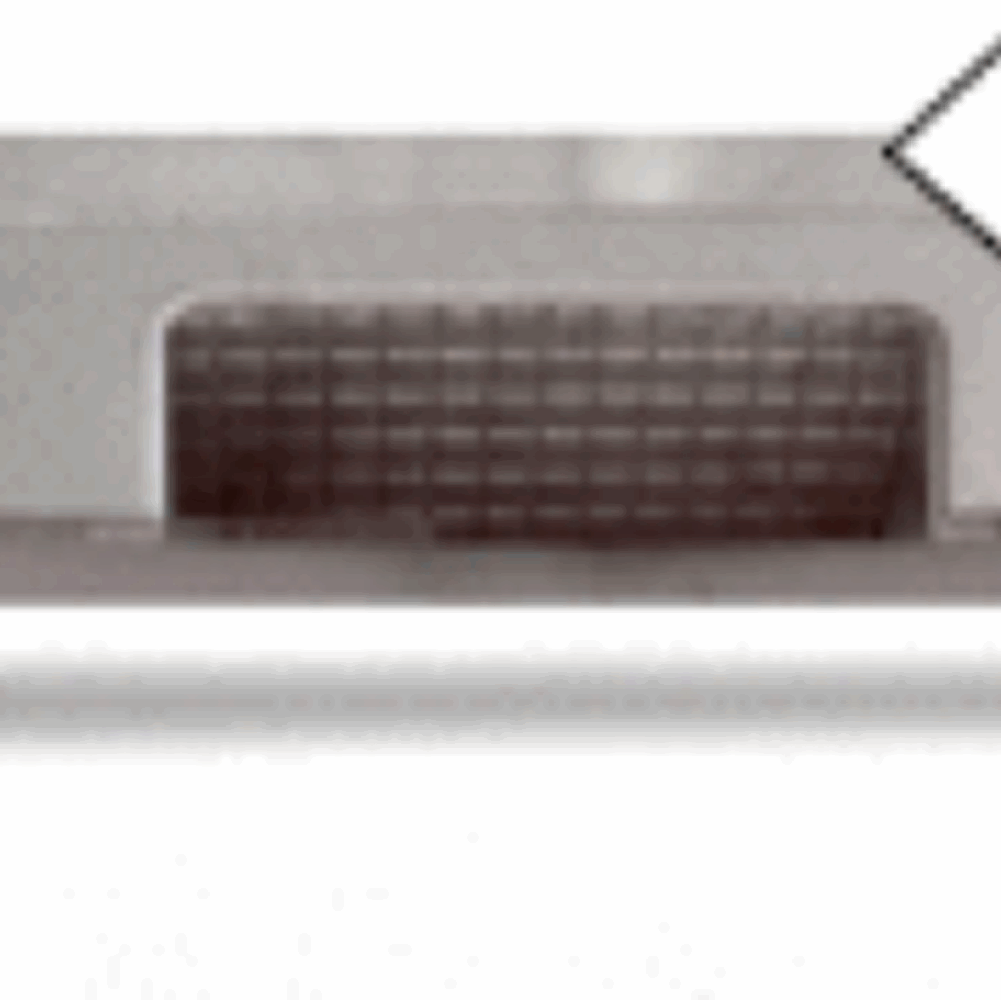

Goal profiles are coated with an alloy of aluminium and zinc, a very tough material preventing wear and tear: goals do not get ruined after many ball strokes.

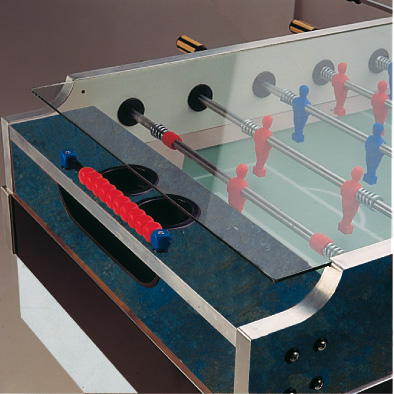

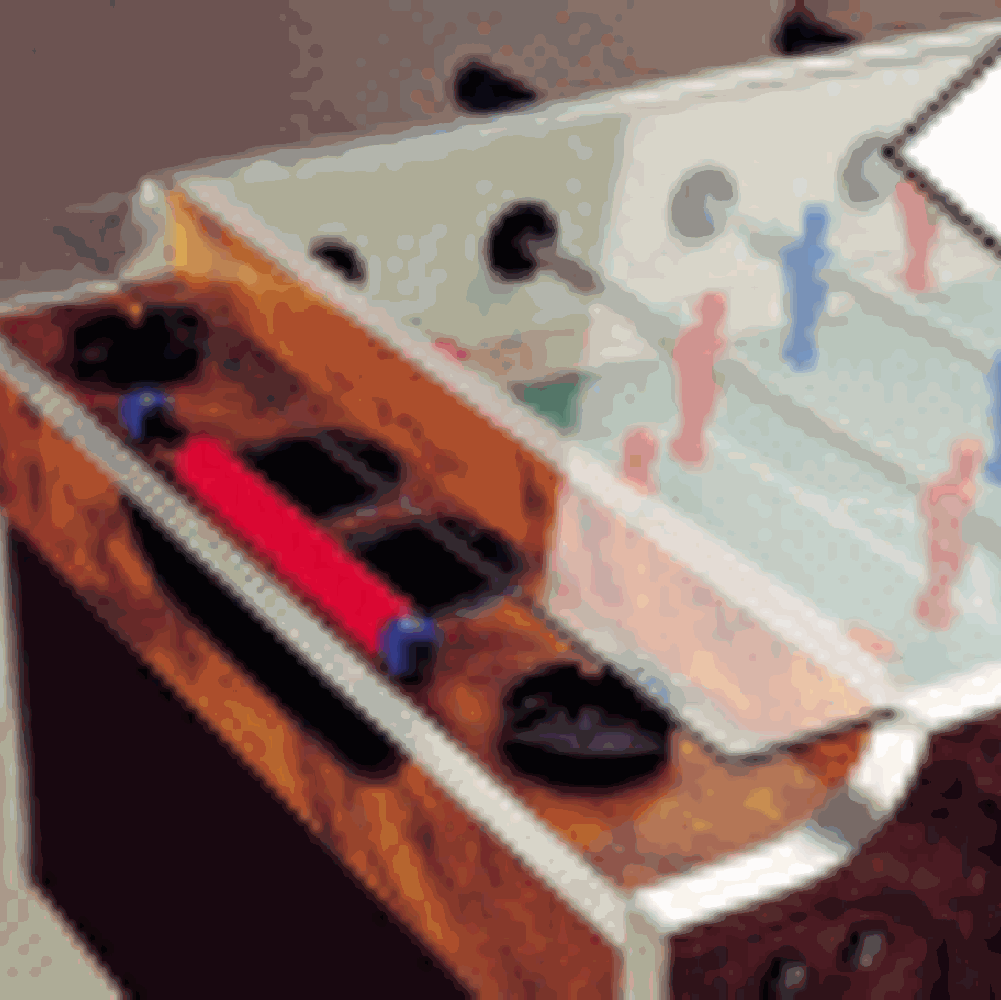

The cabinet is covered by a tempered glass, which reduces the noise of the game and makes any game tampering impossible.

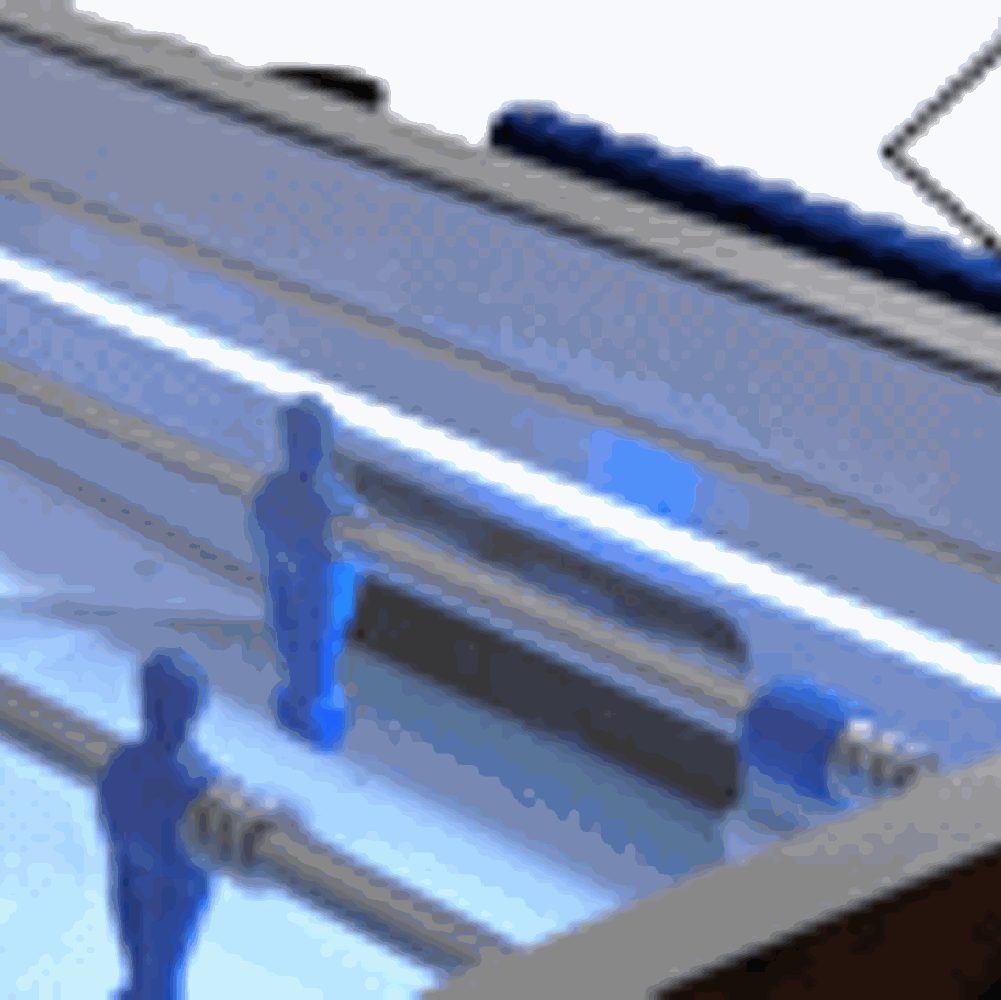

On request, a light system - two Led lamps above the goals - will light up the playfield. The Garlando system complies with EU regulations on the Electromagnetic Compatibility and Safety (Low Voltage).

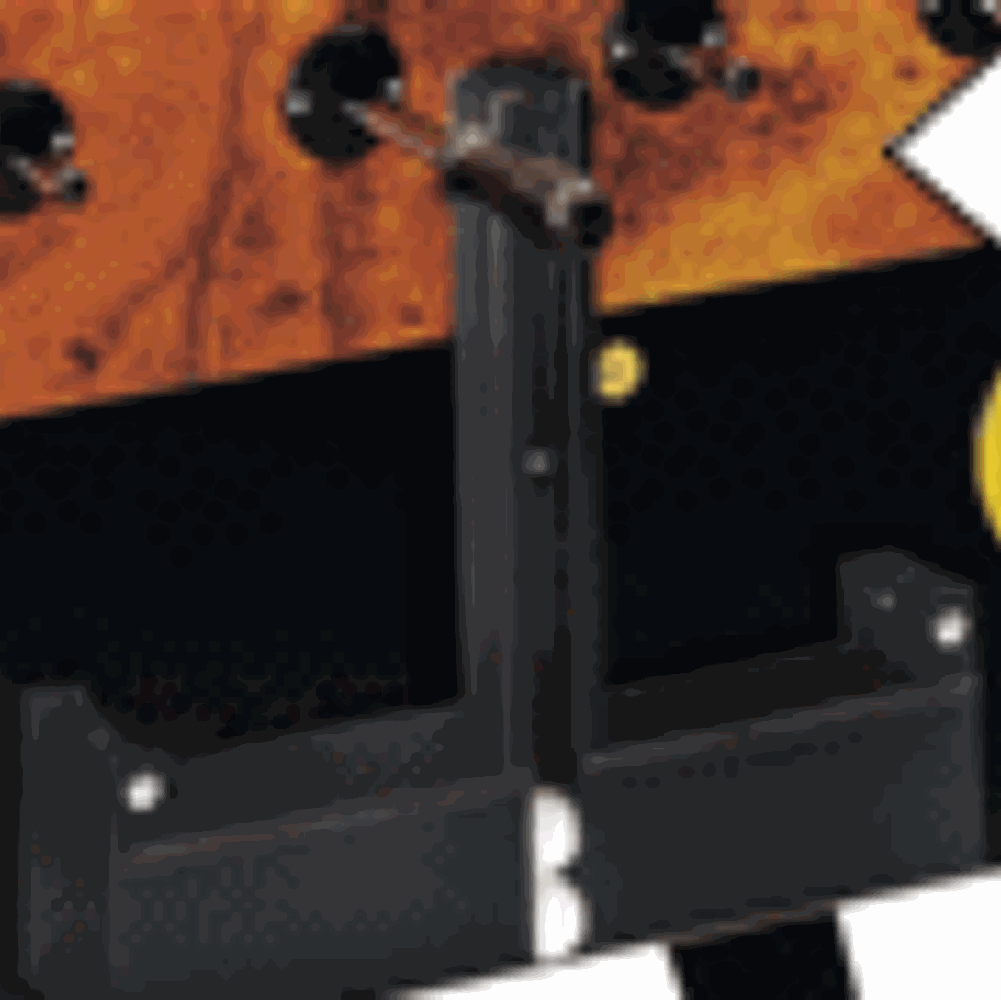

Balls are introduced into the playing field manually through a converyor placed on the cabinet next to the coin mechanism. The system is completely sealed, to prevent ball th

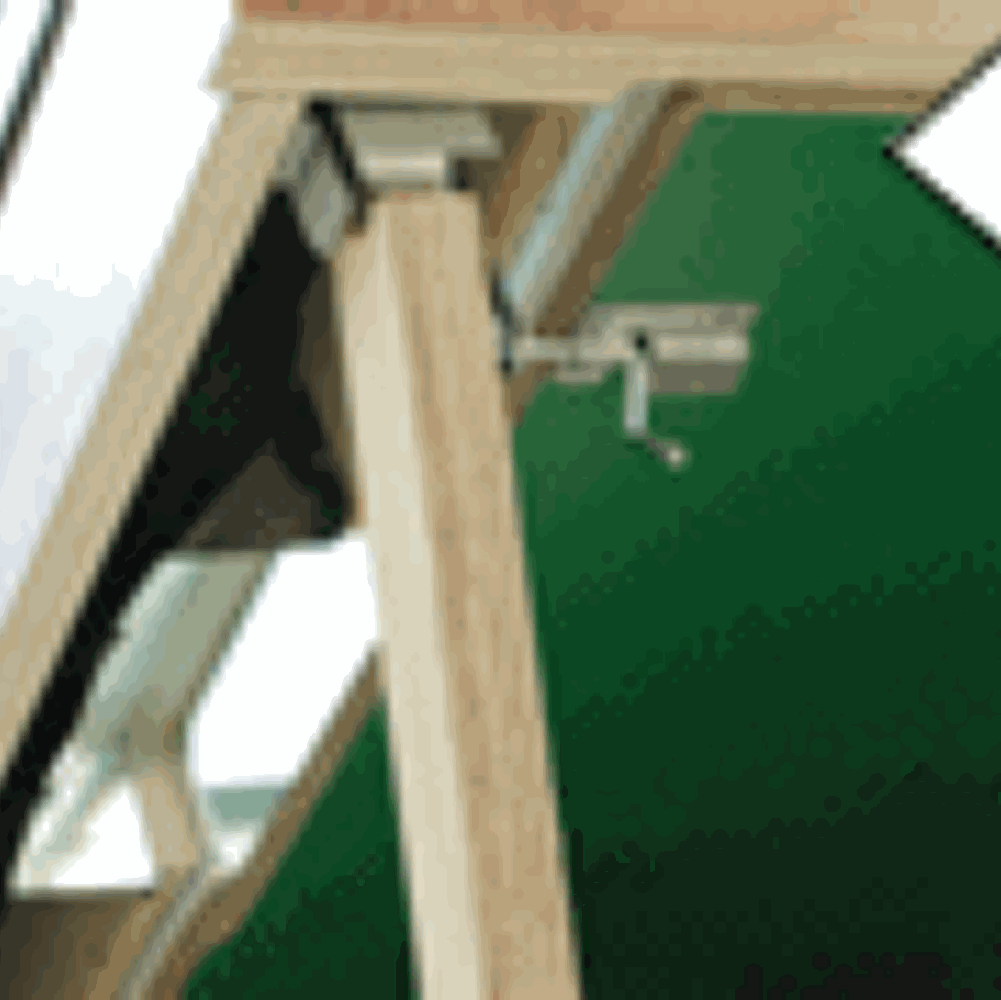

The cabinet can be opened to reach the inside. Its upper part is kept up by a wooden support bracket which prevents the falling of the same, during maintenance and cash-box emptying: all operations can be carried out with full safety.

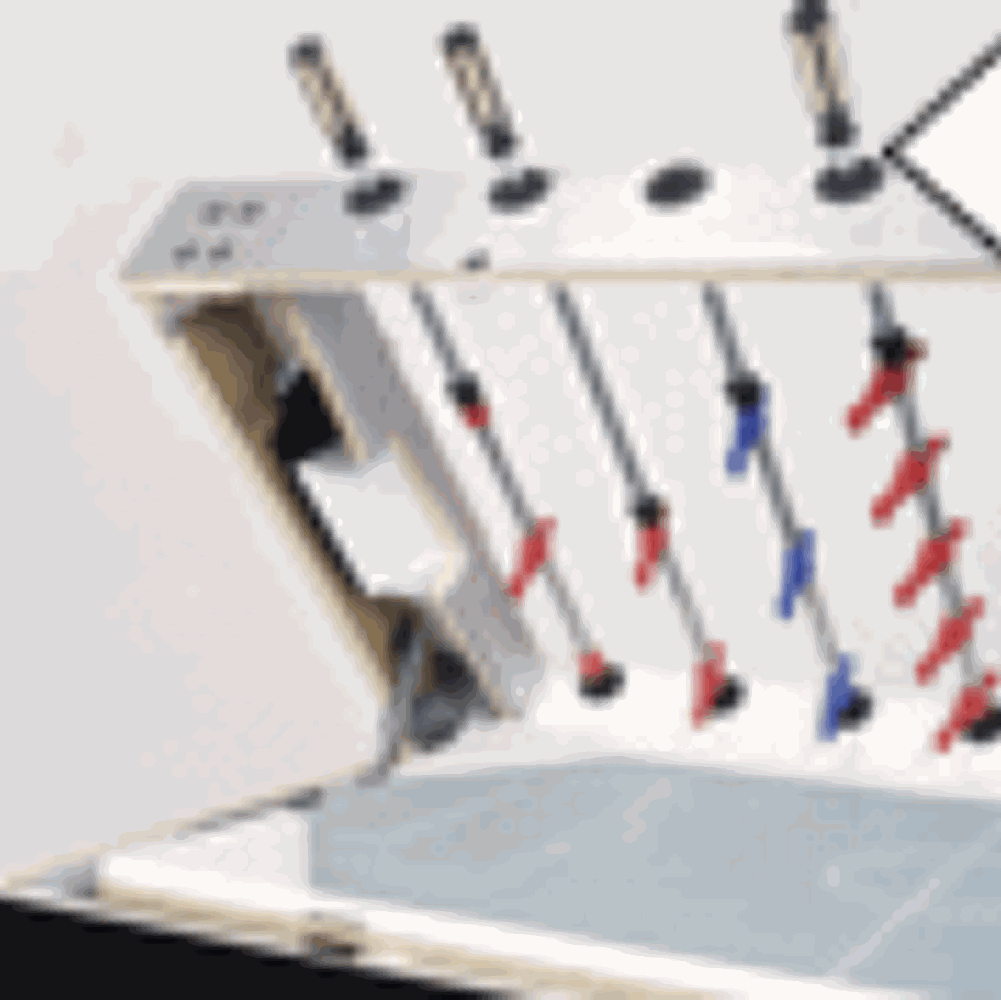

Detachable playing field: two locks enable to detach the playing field from the cabinet upper part for easy cleaning and parts replacing.

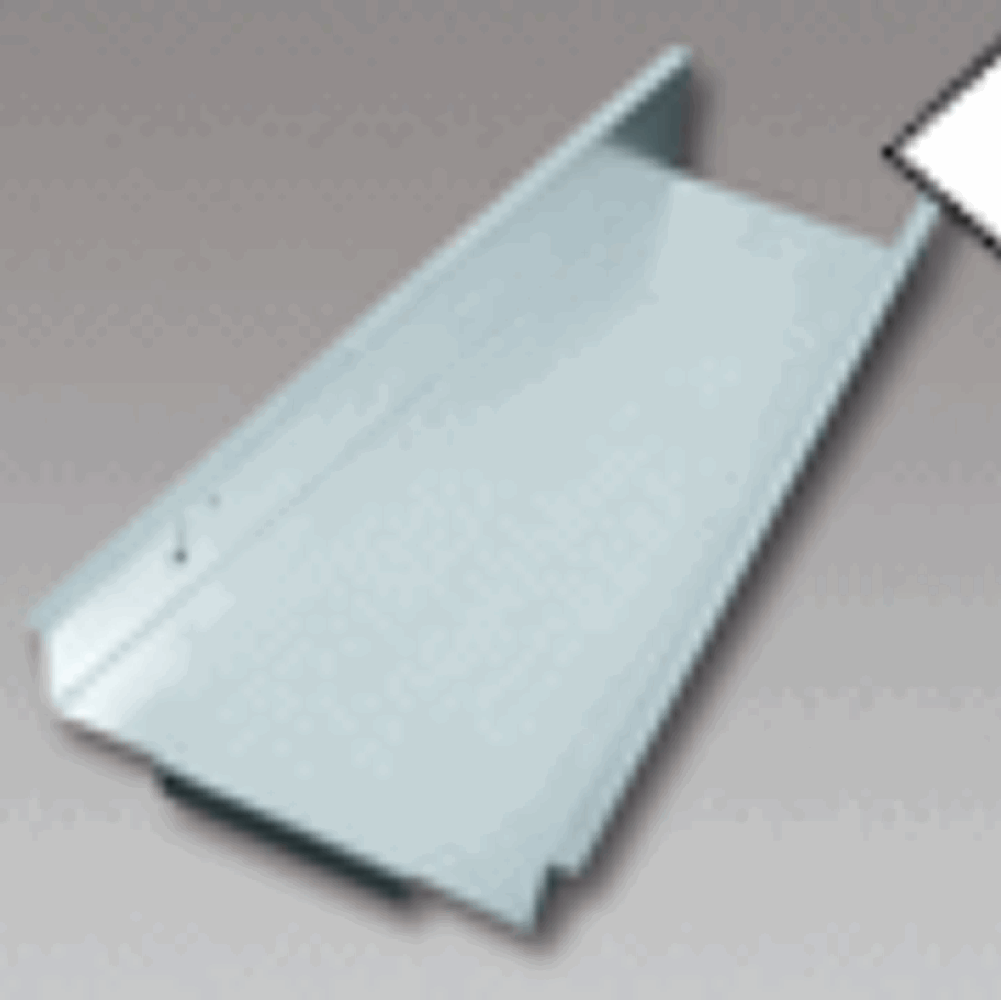

The ball release mechanism is comprised of singularly replaceable parts for easy maintenance.

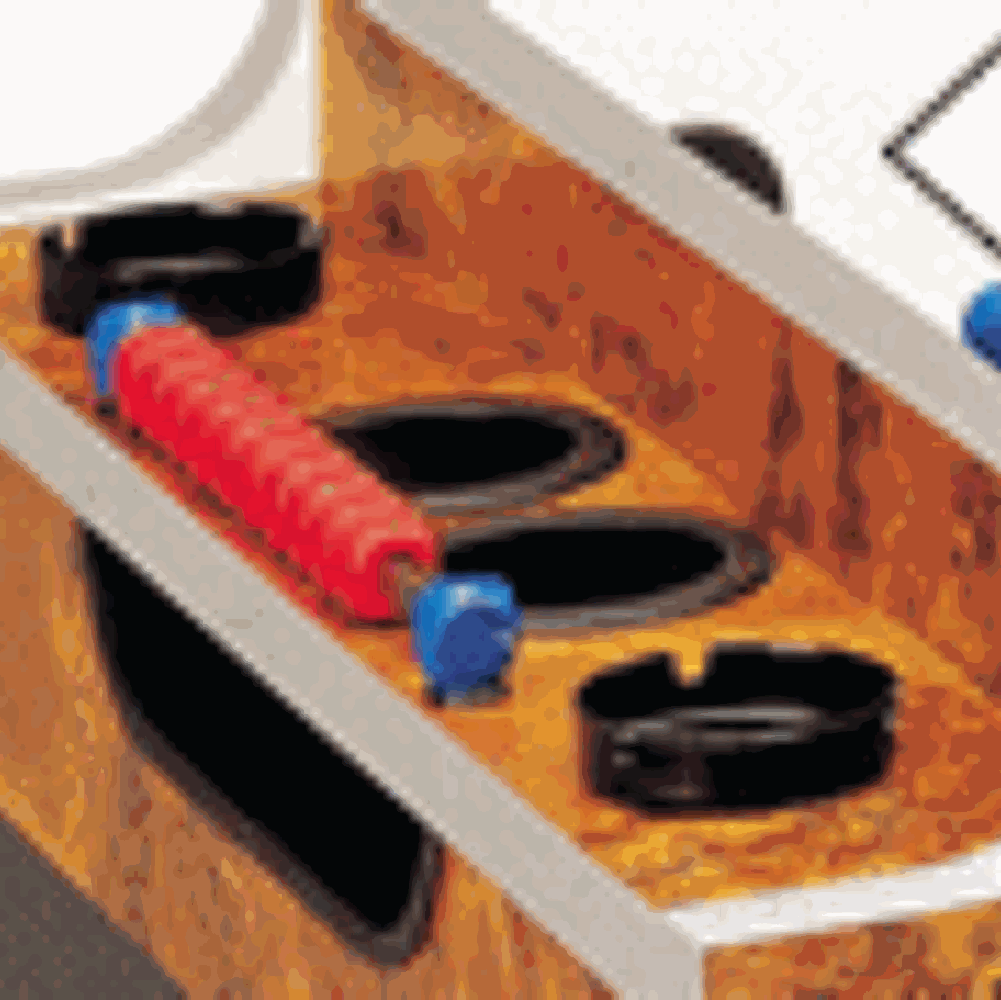

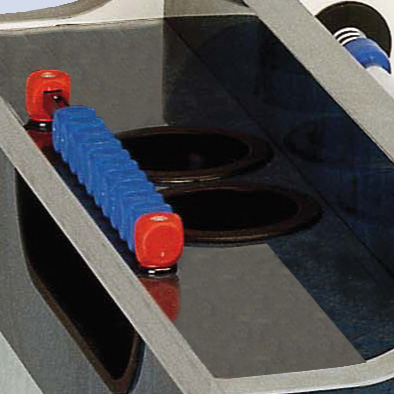

Colour coordinated abacus scorers.

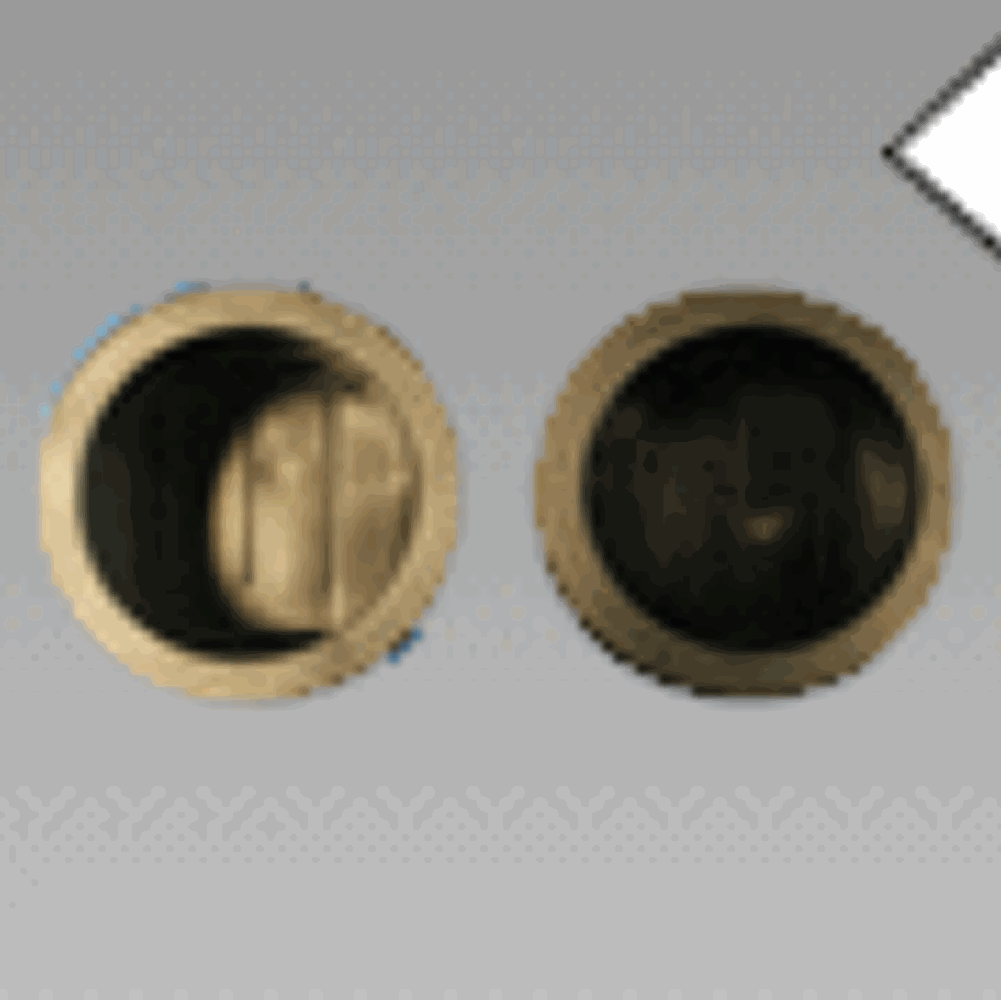

Holders for glasses, bottles and cans complete this table accessory equipment.

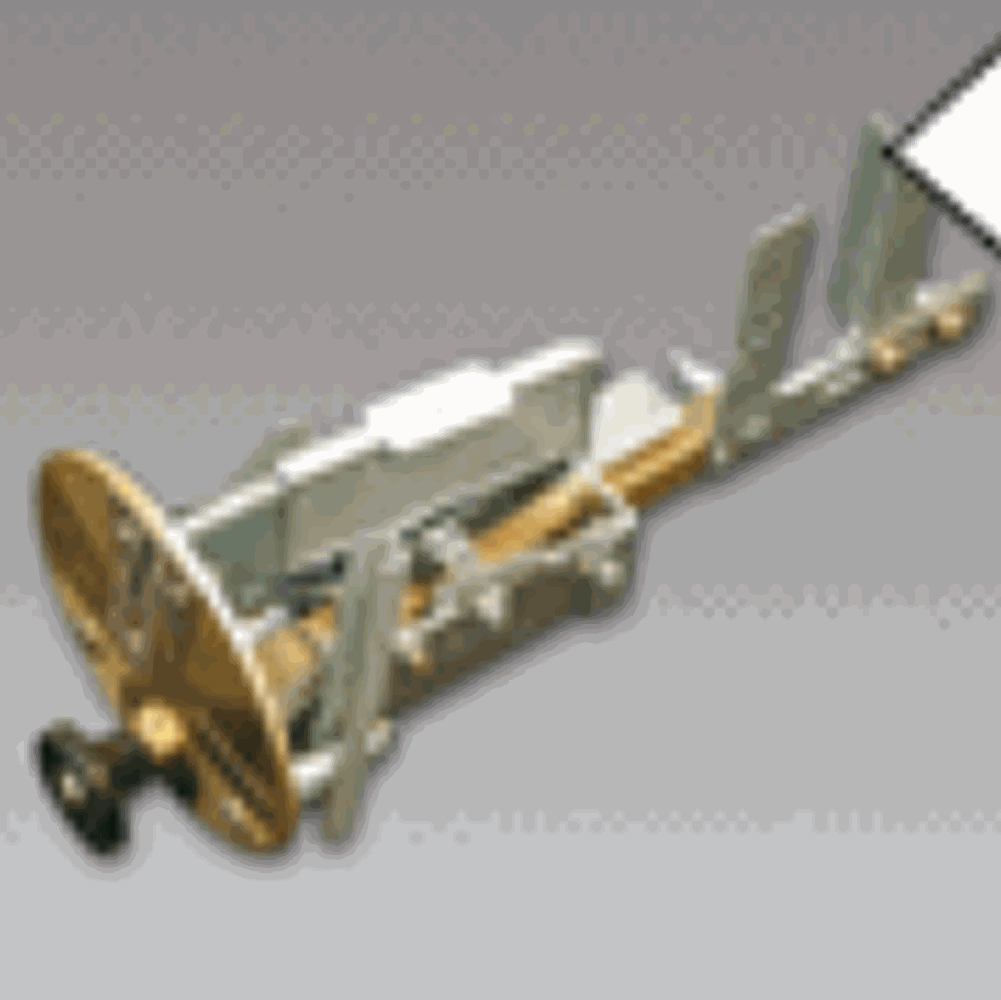

Standard mechanical pull-lever coin mechanism, can be set for any coin or token and releases all balls at once.

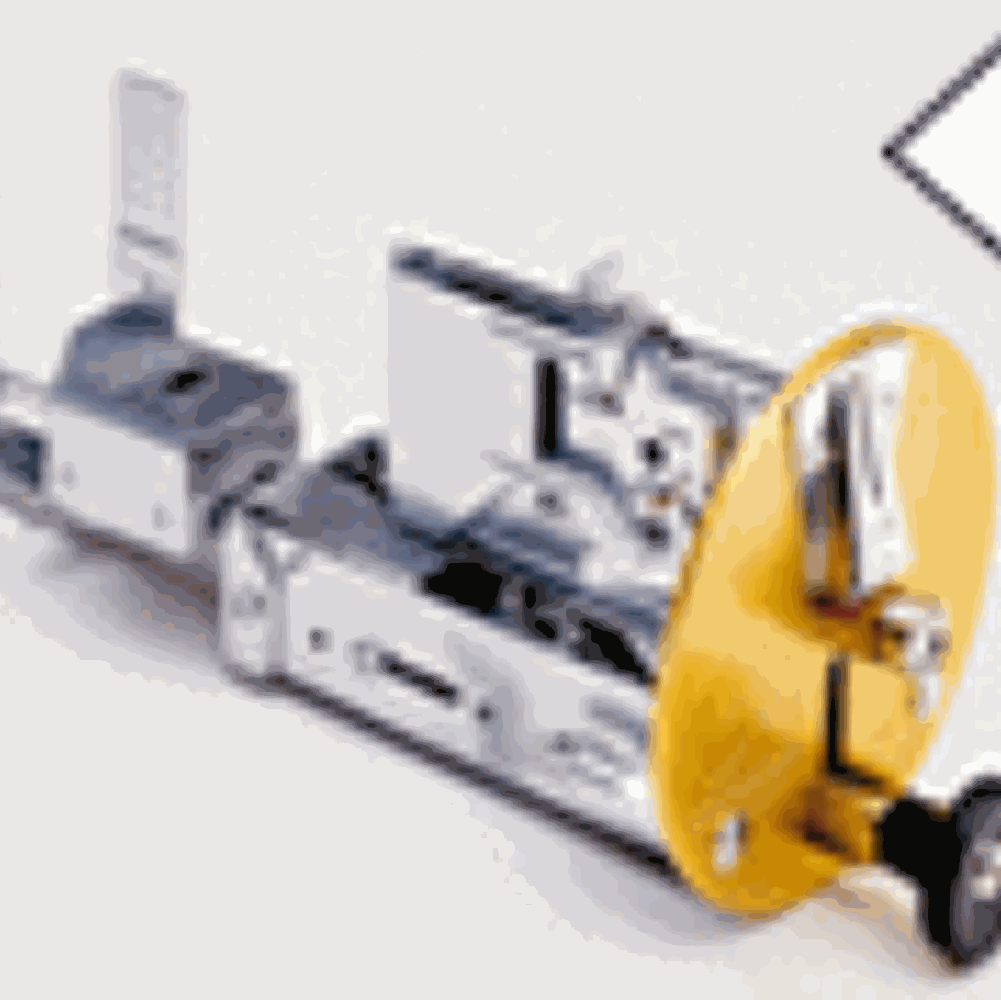

On request, several options of mechanical coin mechanism are available: coin mechanism with coin counter coin mechanism with tamper-proof coin counter coin mechanism with tamper-proof coin counter and rejector

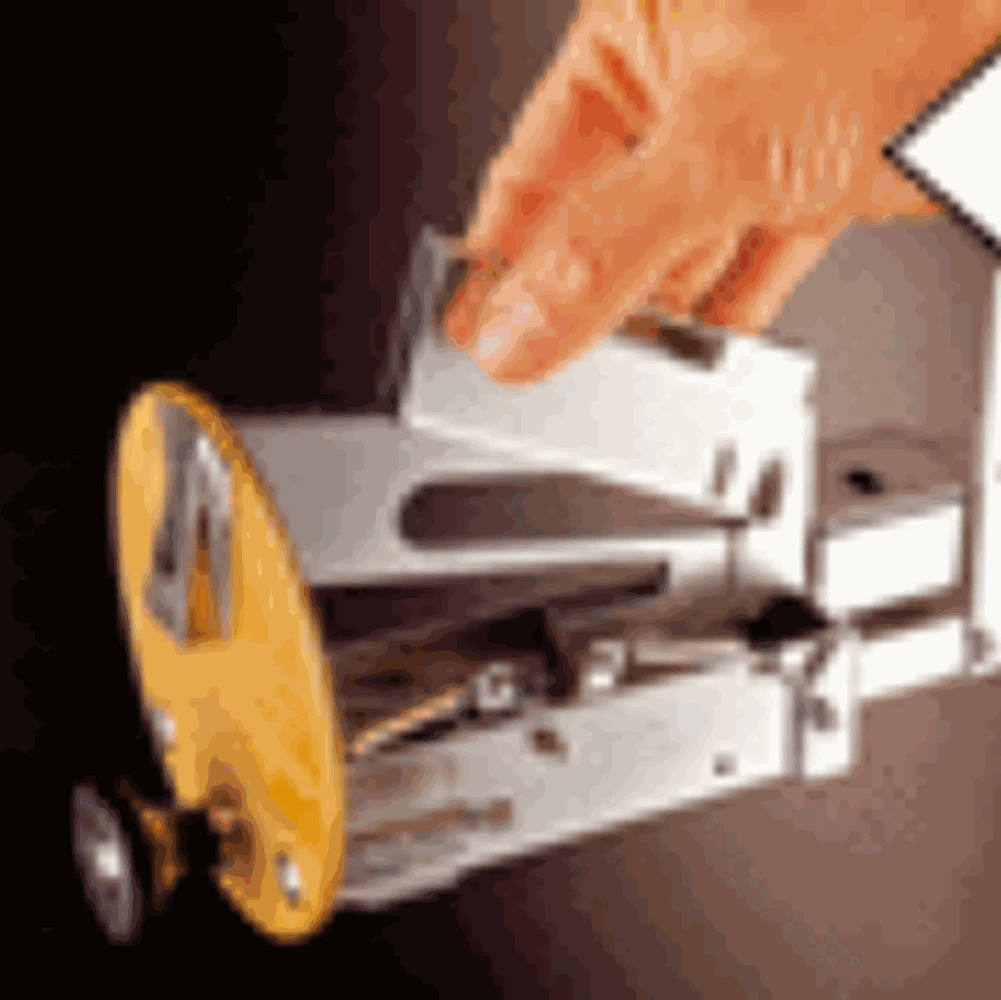

Freeplay option: the coin mechanism can also be disconnected to enable freeplaying.

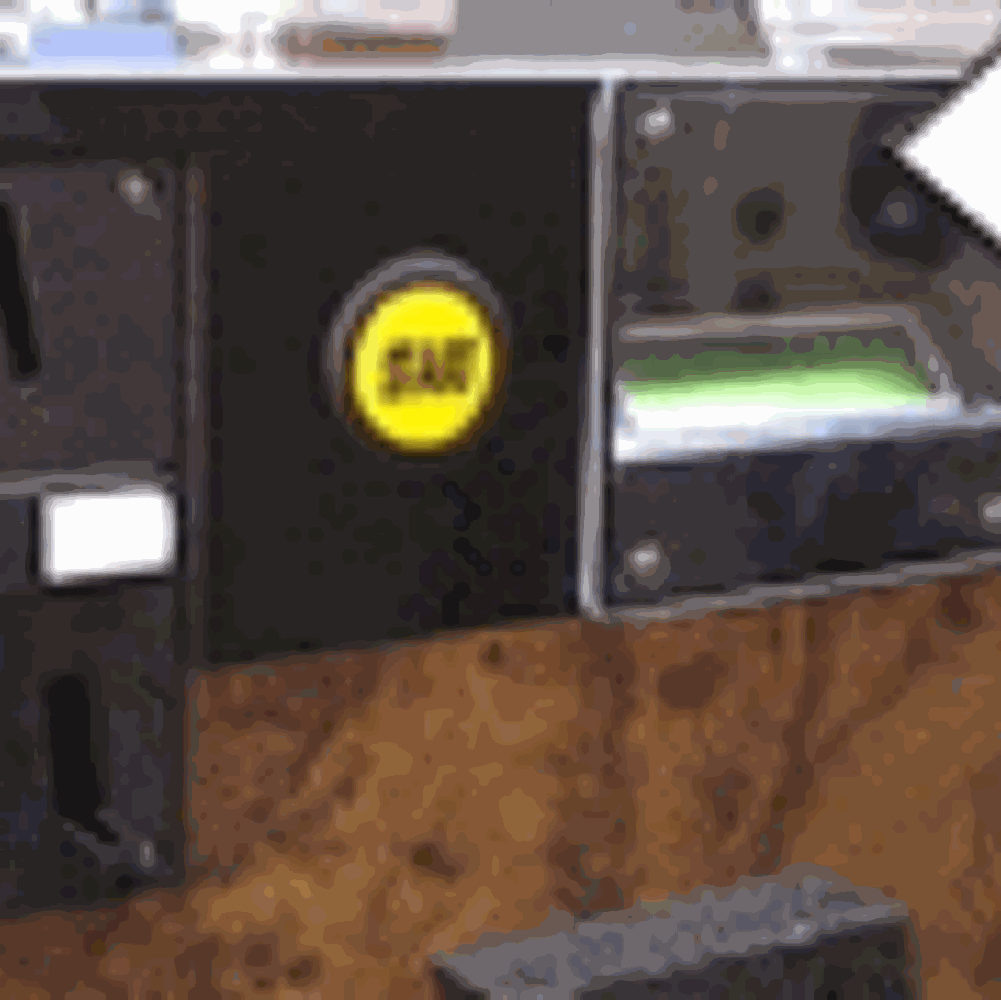

In addition, two more complex systems, for greater programming possibilities, are available: an electromechanical system for a improved setting. the electronic system GARL 2001 to offer the maximum versatility in accepting different dimension coins, allowing bonuses, setting credits and still much more.

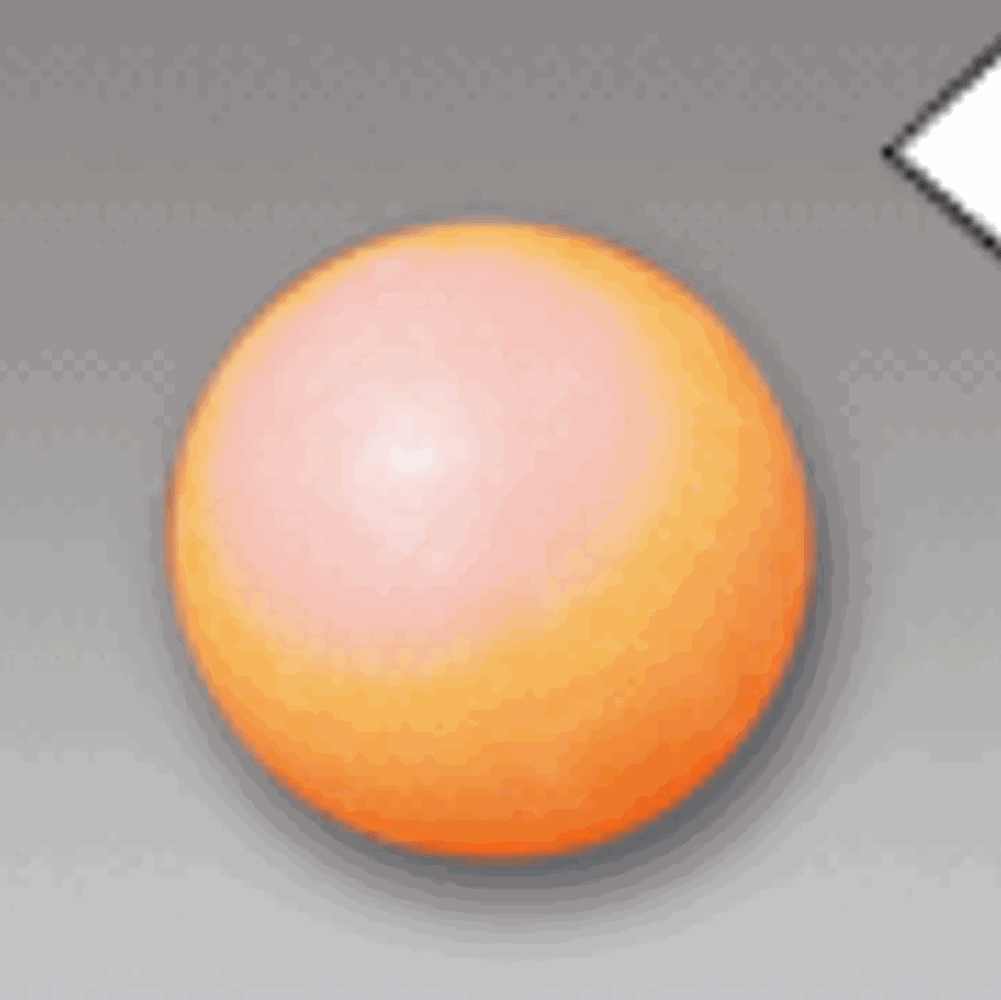

10 orange Standard balls supplied with the table, for increased visibility below the glass.

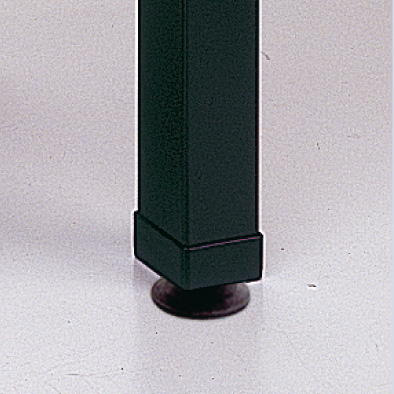

Leg levellers will allow you to obtain a perfectly flat playfield on uneven floors or rough terrains.
They can be installed while assembling the table or afterwards.
Each football table is supplied with a set of ball. See each model Technical Data to know what type it is. Extra balls, or balls of a different type, are available.

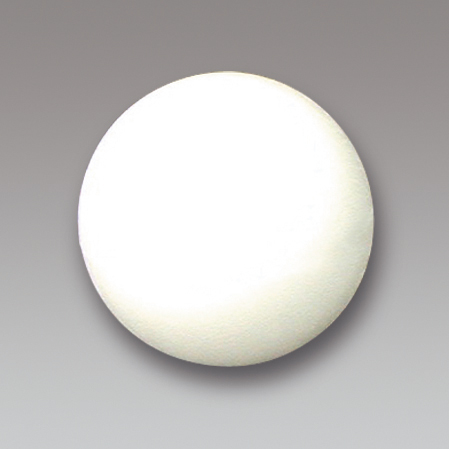

Standard ball
Made in high-pressure moulded polypropylene to reach a good roundness. Its reduced weight makes it ideal for amateur playing.
Colours available: white, yellow and orange - Diameter: 33mm ca. Weight: 17gr. ca.
Competition ball "Speed Control"
Authorized by the International Table Soccer Federation (ITSF) to be used in the international competitions, the Speed Control ball is the perfect compromise between game speed and ball control.
The high pressure molding process obtains an optimal material homogeneity and the perfect roundness enable each game play.
The ball has a slightly rough surface which ensures it runs smoothly and gives the players an excellent control. For skilled players.
Colour: yellow. Diameter 35mm - Weight 20 gr
200 ml bottle siliconic non-oily spray. Lubricates bars, protects them from humidity, dust and wear-and-tear, keeps the roller bearings clean.
In the sea areas, a frequent use of Slidy helps preserving the bars chromium-plating from the saltiness corrosive action.
The simplest Garlando mechanical coin mechanism shares with the other versions the basic structure with all its best features of sturdiness and reliability.
The next step after the basic model, this coin mechanism is equipped with a coin counter clicking each time a coin is inserted. It allows to check how many games are played on a table to verify the correspondence of revenues.
A technically advanced model, this coin mechanism is particularly convenient wherever it is necessary to take some measures to protect incomes.
This high performance mechanical coin mechanism effects an extremely accurate coin selection, by evaluating the weight and the magnetism, besides checking diameter and thickness.
Shipping the goods safely is important not only to avoid damages to the products, but also to ensure the customer’s complete satisfaction.
For all shipments the most suitable type of packing is evaluated. Each football table is packed in a strong double-wall carton fastened by straps. The strap pressure on the carton has been specifically measured to obtain a safe packing without causing damages to the product inside.
The time required to complete this procedure is approximately 30-45 minutes.
In order to ensure the table long life and continued playing appeal, we recommend that you follow the instructions below.
Your table has been manufactured for indoor playing: do not leave it outdoors. Rain, snow and high humidity may damage its materials. Prolonged exposure to the sun is to be avoided too, due to its bleaching effects on the colours.
Clean your table periodically by rubbing its surfaces with a damp cloth to eliminate dust and other dirt residuals.
You can use any household detergent which does not contain wax or abrasives, having care to completely take it off. Ammonia-based cleaners, scoring compounds, or solvents such as acetone, gasoline, etc. should absolutely be avoided, as these will damage the colours, especially those of the cabinet. Do not flood the table.
If the table has a glass playfield, beware not to wet the card below, which could wave.
Garlando roller bearings do not require any lubrication. However, should you wish to furtherly improve their smoothness, employ a good quality silicone spray, such as Garlando’s proposal Slidy, which has a lubricating and protective double action.
Be careful not to use any vegetal or any other type of grease which may attract dirt and clogg the roller bearings.
Using a spray is also useful to prolong the bar chromium-plating.
For a better protection from dust, especially if the table is not used for a longtime, the use of the protection cover is advised.
Coin operated football tables, specially meant for public places, are not bound to comply with the safety rules applying to home models (European Harmonized Rules of Safety EN 71).
They are excluded by the Italian law from the respect of said rules, as “the professional games installed in public places do not belong to the category of toys”.
However Garlando, aware of the importance that safeguarding the users’ safety has for the football table good use and enjoyment – both from the operators’ and the players’ point of view – for this line of products uses the manufacturing criteria that guarantee the safety on home football tables.
Therefore the same warnings – with some additions – which guarantee for a safe use of the freeplay tables are valid for the coin operated ones as well.
Strict compliance is recommended in the following cases:
For professional operators, in particular, the section Maintenance inside the cabinet
With children, always prefer football tables equipped with telescopic safety bars, whose ends do not protrude from the cabinet.
If your football table should have protruding bars, teach your children not to get their face near the protruding parts.
If children are very little, it is advisable that an adult supervise the playing.
Unpacking should be carried out entirely by adults. Keep children away during all steps.
Immediately clear off the packing, particularly the nylon parts and the straps which may cause children to suffocate.
Assembly (and, whenever necessary, disassembling and part replacing) should be carried out entirely by adults.
Keep children away during all assembly steps to avoid that they may be fortuitously hit by the table components as well as preventing them from seizing parts (such as bars) that, if improperly used, could be very dangerous.
The small parts (such as bearing retainers, roller bearings, screws and bolts) not yet assembled may be swallowed or inhaled: keep them away from children.
Effect the assembly correctly (following the Instructions supplied with the table) and take care not to leave any screw or bolt loose: if they are tightened properly it will be impossible for a child to take them off.
Always keep the balls away from children under 3 years of age: having a diameter smaller than 3,17cm they could be swallowed and cause suffocating.
Do not use the football table for other aims than the proper one.
Explain to your children that it is risky to put their hands inside the playing field while a game is being played, because rods, while moving, may crush their fingers.
We recommend that the table should be kept always locked, to prevent children from opening the cabinet. One child is not able to open and lift the cabinet upper part but two or more children could. This would involve the risk of the upper cabinet falling down crushing their hands.
All operations to move a table must be carried out by adults. Keep children away at all times.
If your table has a working coin mechanism (not a disconnected one), from time to time you will have to open the cabinet to empty the cash-box.
In this case, or whenever it is necessary to effect maintenance inside the cabinet, all the operations must be carried on by adults.
Before opening the cabinet check that are no children around.
Make sure that the upper cabinet safety support is operated correctly and that no child or adult but you insert hands inside the cabinet.
Beware of touching the edges of the metal ball track components: they may be sharp.
We recommend that the table should be kept always locked to prevent children from opening the cabinet. One child is not able to open and lift the cabinet upper part but two or more children could. This would involve the risk of the upper cabinet falling down crushing their hands.
If improperly used it could cause suffocation, therefore the following is recommended:
If the levellers are ordered together with the table, it is preferable to put them on before fixing the legs.
If you have to put them on after the legs have been attached (because of a later purchase), it will be necessary to lay the table on a side: keep children away when handling it.
Once the levellers have been assembled, verify the table stability (if the assembly is correct the table is stable) before allowing the children to play.
Wear and tear depends on the intensity of the use, which can cause some parts to need replacing after a shorter time.
Remember that a damaged or non-working table could be dangerous for children. Replace any damaged part at the earliest.
Periodically effect the proper maintenance following the instructions supplied Your table will always be reliable, preventing situations of accidental danger.
Periodically inspect the table wear and tear and replace any damaged or worn out parts.
Do not mend the table in an inadequate way. Please inquire at our Technical Department.
Always follow the safety warnings contained in the Assembly & Use Instructions supplied with the table.
