Technical Data
-
Cabinet constructed from high quality multi-layer plywood coated with plastic laminate. The sturdiness of the materials utilized is increased by the remarkable thickness (3cm = 1+1/4in) to create a heavy duty structure for the toughest use.
-

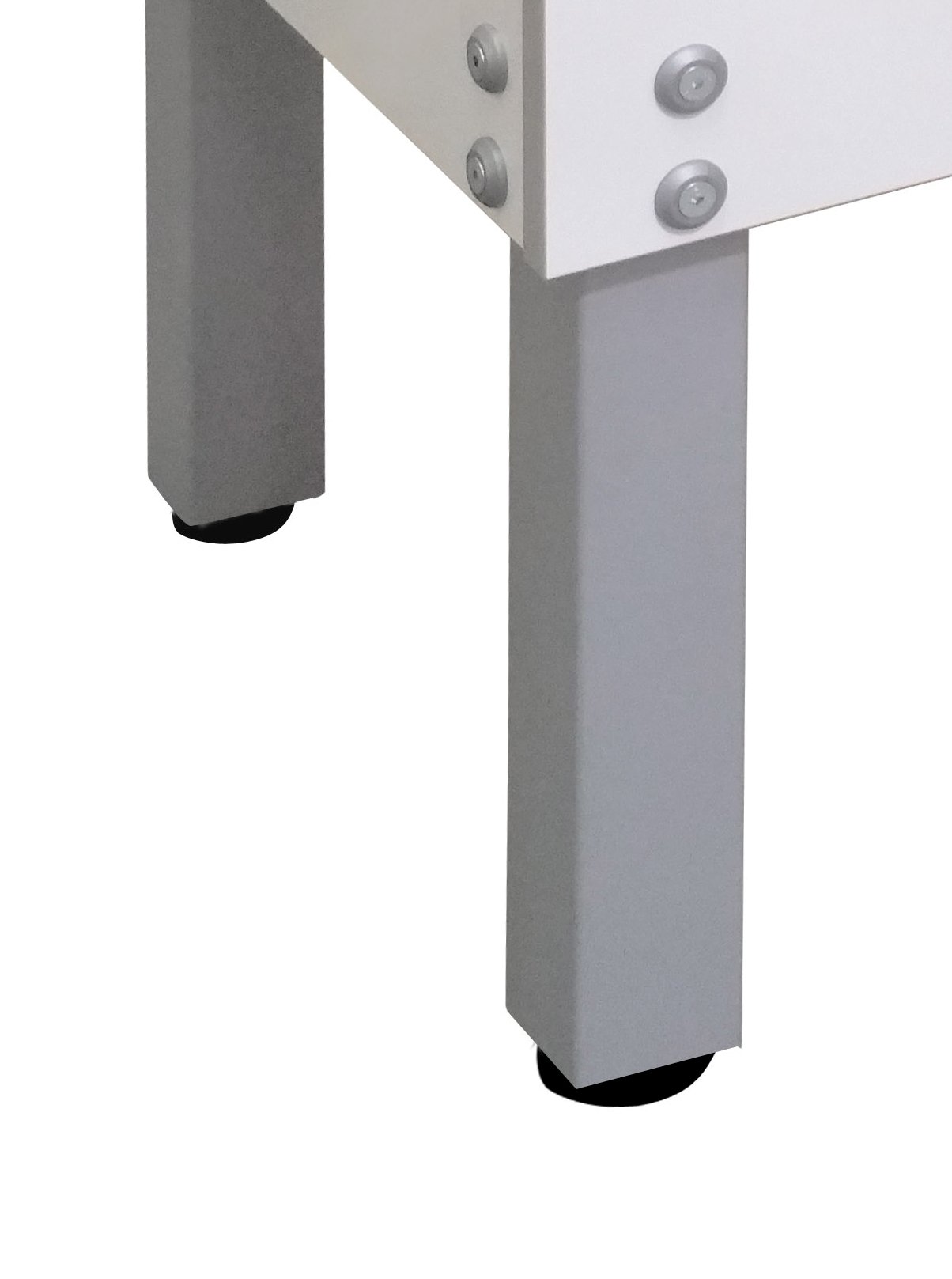

The table structure is kept together by metal plates and brackets fastened by screws and bolts for easy replacing of all parts, even the wooden ones.
-

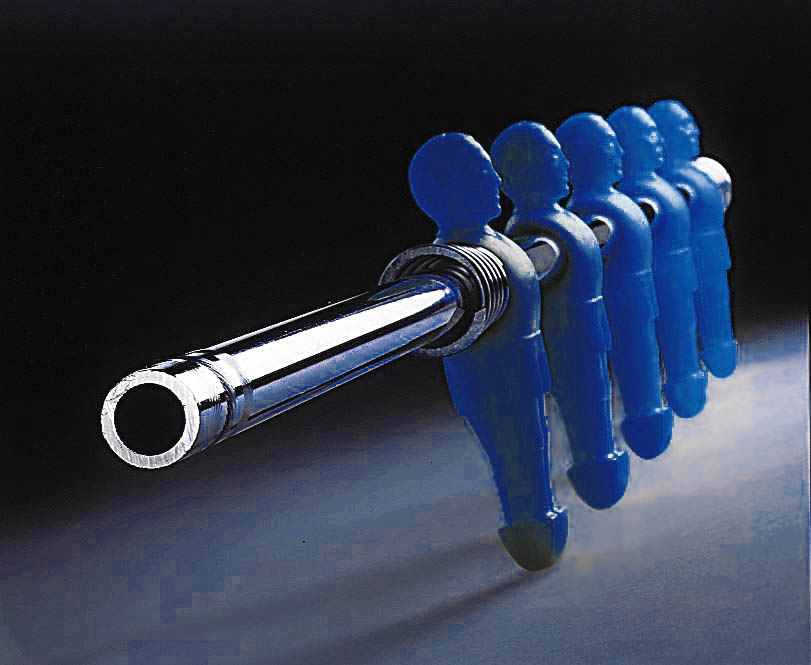

High stress resistance machine-trued hollow steel bars - diameter 16mm - coated with a three-layer anti-rust chromium-plating. The quality of the materials used, adds to the thickness of 2,2mm to prevent the bars from bending: they maintain a perfect shape for a long time. It is possible to choose between the going-through (also called solid) bars and the telescopic type.
-

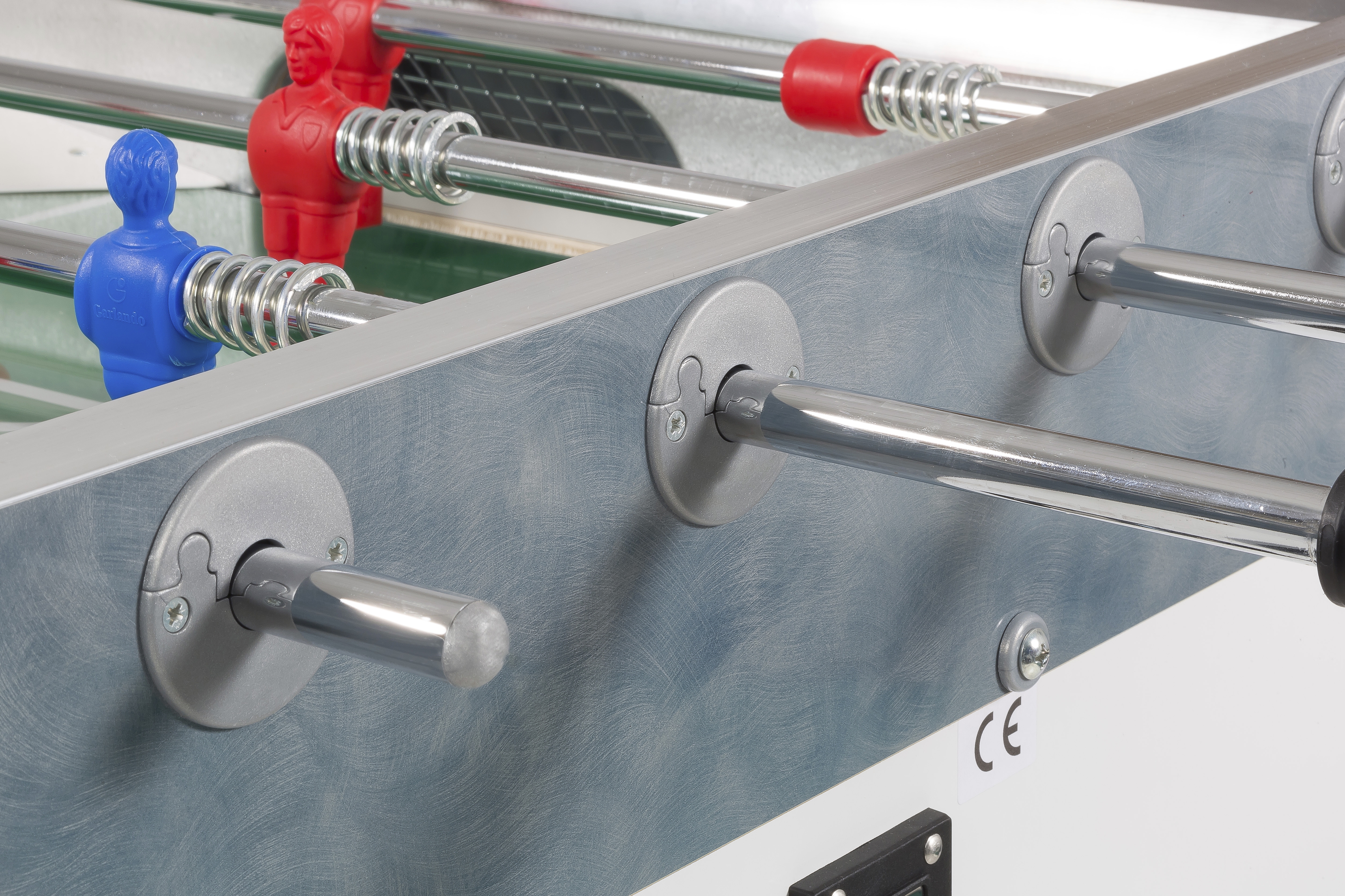

Going-through bars: the standard bars protrude from the cabinet - at the handle opposite side - to follow the international competition standard, which is also used in many countries worldwide.
-

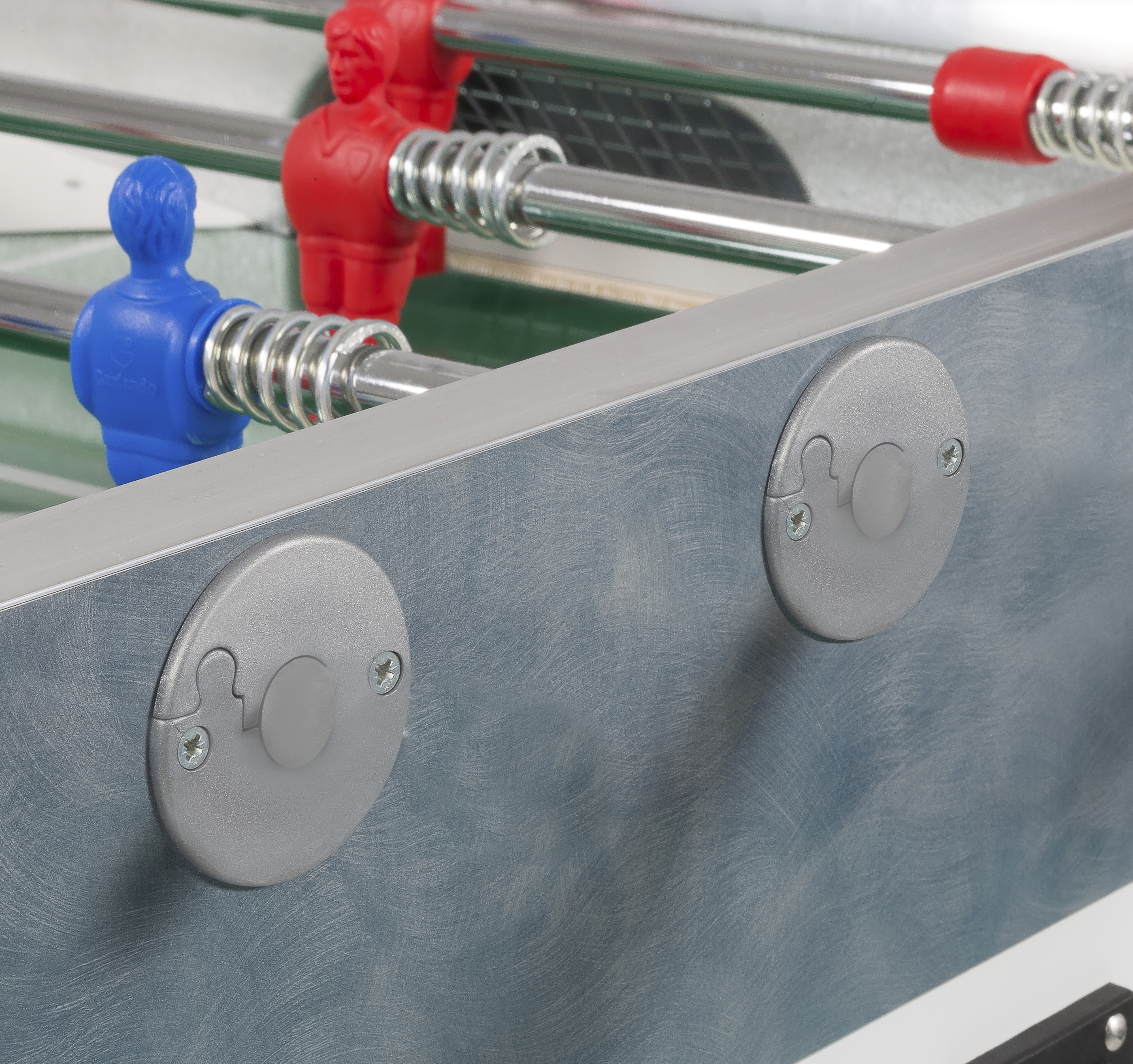

Safety device (telescopic bars): on request each table can be equipped with telescopic safety bars, having the same technical features as the going-through type. The difference is in the functioning, to obtain the maximum level of safety.
-
In telescopic bars a smaller diameter bar glides inside the players bar, whose end does not protrude from the cabinet. This prevents dangerous strikes to the childrens' eyes and face. Its use is strongly advised if the football table is meant for children and in the event that the table must be put in a location attended by children.
-

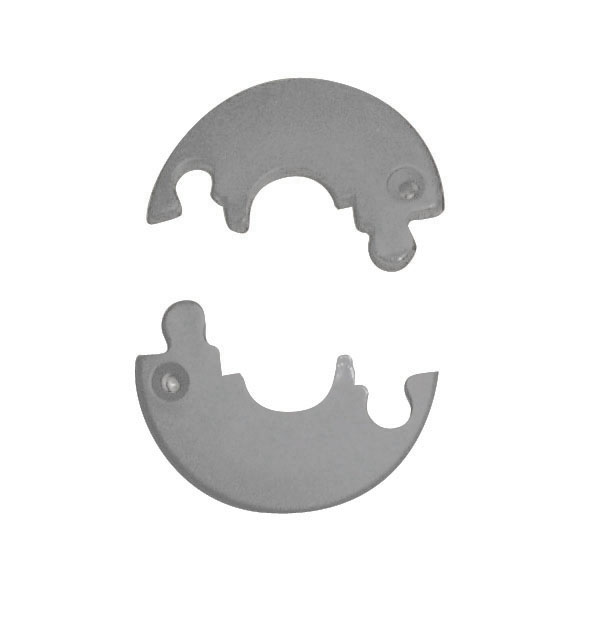

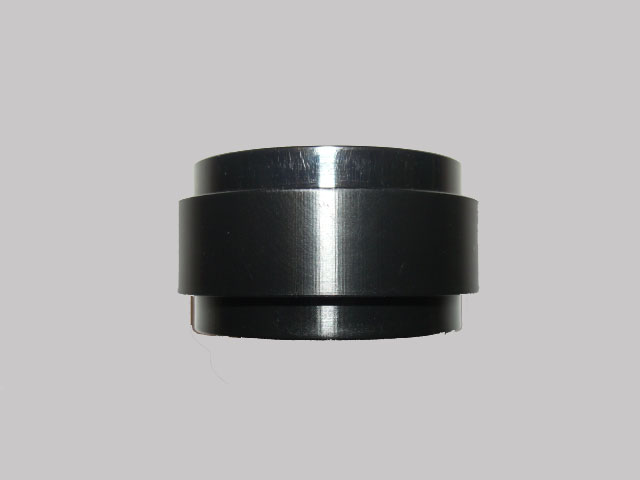

The steel roller bearings inside the bearings which fix the bars to the cabinet greatly improve the game speed, while reducing the stress for the players' wrists.
-

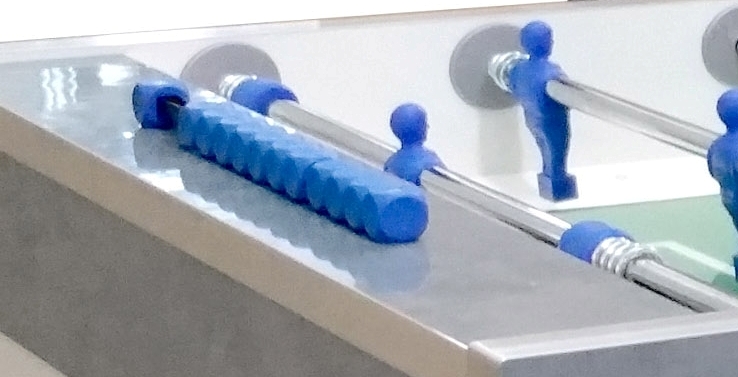

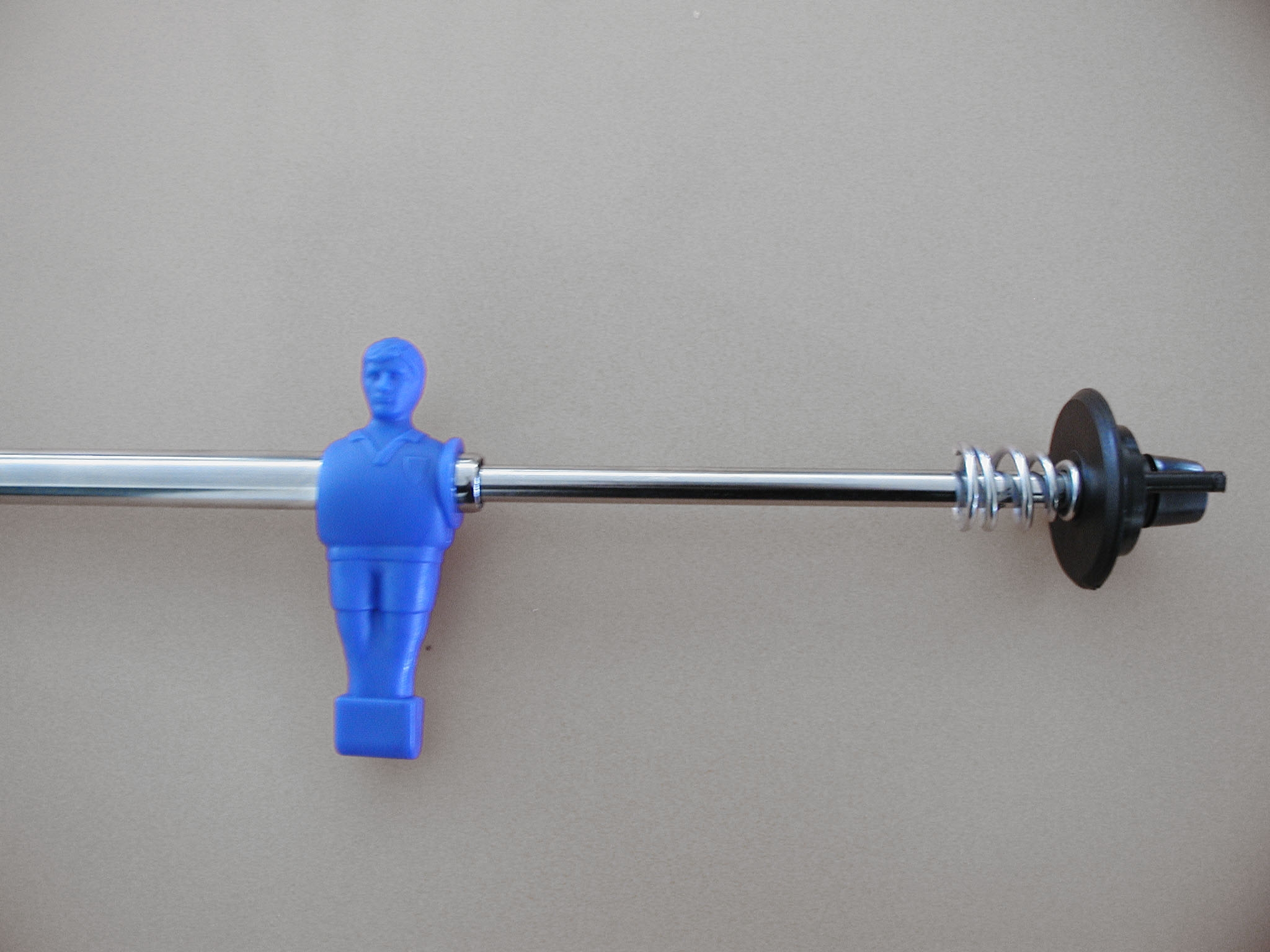

One-colour players in plastic material (moplen) representing a stylized human figure, directly moulded onto the bars: they do not move, cannot be displaced and maintain their positions perfectly. Team colours: red and blue.
-
Playing field in choice of transparent glossy glass, non-reflective sand-blasted glass or plastic laminate (the latter is available for the version with fully rotating goalkeeper only). Glass is 5mm thick and always tempered. The silk-screen printed white lines on a green background reproduce the football ground.
-
The cabinet can be opened to reach the inside. When the upper cabinet is lifted, a metal support bracket automatically activates to avoid the falling of the same, during maintenance and cash-box emptying: all operations can be carried out with full safety.
-
Detachable playing field: two locks enable to detach the playing field from the cabinet upper part for easy cleaning and parts replacing.
-
Standard mechanical pull-lever coin mechanism, can be set for any coin or token and releases all balls at once.
